Digital Recorder of Telephone Conversation

Number on phones lines ranges from 1 to 8
Separated replay and recording system
Two second search time
Easily upgradable to accommodate more lines
Replay the recordings on a standard PC with Windows 95 equipped with Replay Set Ucho
Easy to use replay system
No user intervention is required for recording
Archive of selected recordings onto any available media
Listening of any conversation on any line in Real Time
Several search criteria including:
  Date and Time
  Incoming or outgoing calls
  Notes
  Incoming phone number or outgoing phone number
  Line Used

 Identification of the dialled phone number and Caller ID capable
 Easy to install, plugs in like an answering machine
 Secured recordings, only supplied hardware can replay recordings


Key Features:


VRBA

Recording:
 Hardware compression
 Hard drive based recording
170 – 5000 hours recording time
Number of phone lines: 1-8

Phone line connections:
 Connection through RJ type
 (like a normal Answering machine)

Recorded Data:
 Date and time of a call
 Length of a call
Recognition of a Tone or Pulse phone number
Recognition of incoming or outgoing call
Caller ID***

Network operating system
 Standard LAN protocol IPX/SPX

Real time setting for recorder
 Manually from player
 Automatic by DCF 77 receiver
Automatic by GPS receiver

Power supply
 230V/50 Hz
 150 W

Dimension
 Rack mounted 19“ výška 3U

Weight
 5- 10 kg

*** May not be available in all area

 Replay set UCHO

System requirements
 Standard PC
 Windows 95
 8 Mbyte RAM
 Free 1 Mbyte on your harddisk
 VGA card
Network adapter
 1 free ISA slot
 Mouse

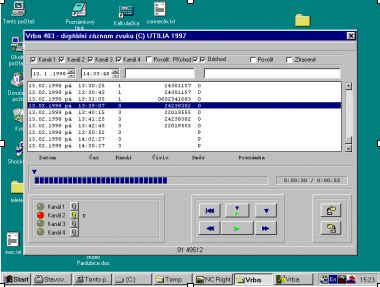

Replay
 Transfer recorded data by LAN
 Hardware decompression
Audio output  200 mV
 Active type speaker or headphones
 Call monitoring

Search criteria
 Time and date
 Incoming / outgoing calls
 Outgoing phone number
 Incoming phone number ***
 Notes
 Line used

Archive
Data files (diskette, LS 120, ZIP, JAZ e.t.c..)

Delivery contains

 Recorder VRBA
 Reply add-on card
 Replay software
 Active speaker
 Headphones
 User manual
Per order
 Network adapter
 Network cable
 PC for Replay set
